  •  Weighing Balance RSB-W SERIES
  •  Weighing Balance RSB-W SERIES

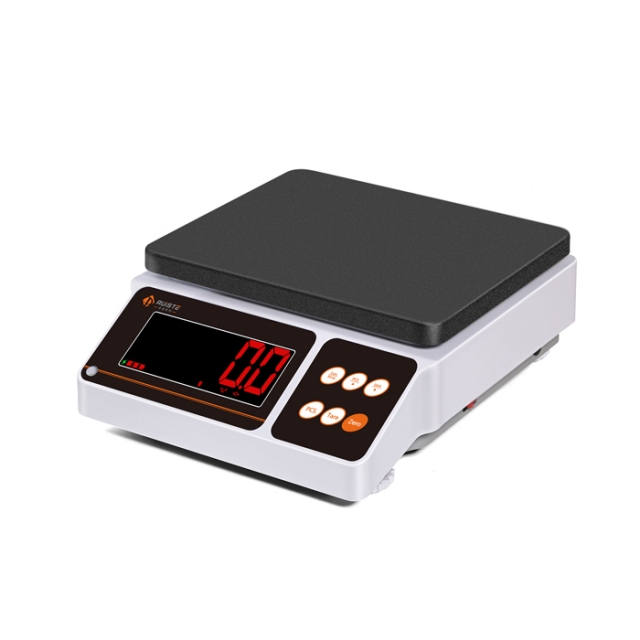

Weighing Balance RSB-W SERIES

Model:0.1g/1g

The RSB-W series adopts high-definition keys, which is economical. The entire series of balances adopt Nuosheng sensors, brand sensors, and aluminum alloy structure to ensure high accuracy and stability of weighing results. This series of precision casting ABS Environmental protection materials are designed, with one-key switching mode of Chinese and English interface, high-efficiency die-cast aluminum alloy base, stable and solid bearing base, clear and visible samples of fully transparent glass windshield, stainless steel table panel and stainless steel frosted large plate 29*23cm, resolution as high as 1.2 million, high-speed 24bitsad, anti-interference ability, anti-radiation, anti-static high-efficiency, etc., with weighing, counting, counting mode.

National Hotline:150 0216 1986

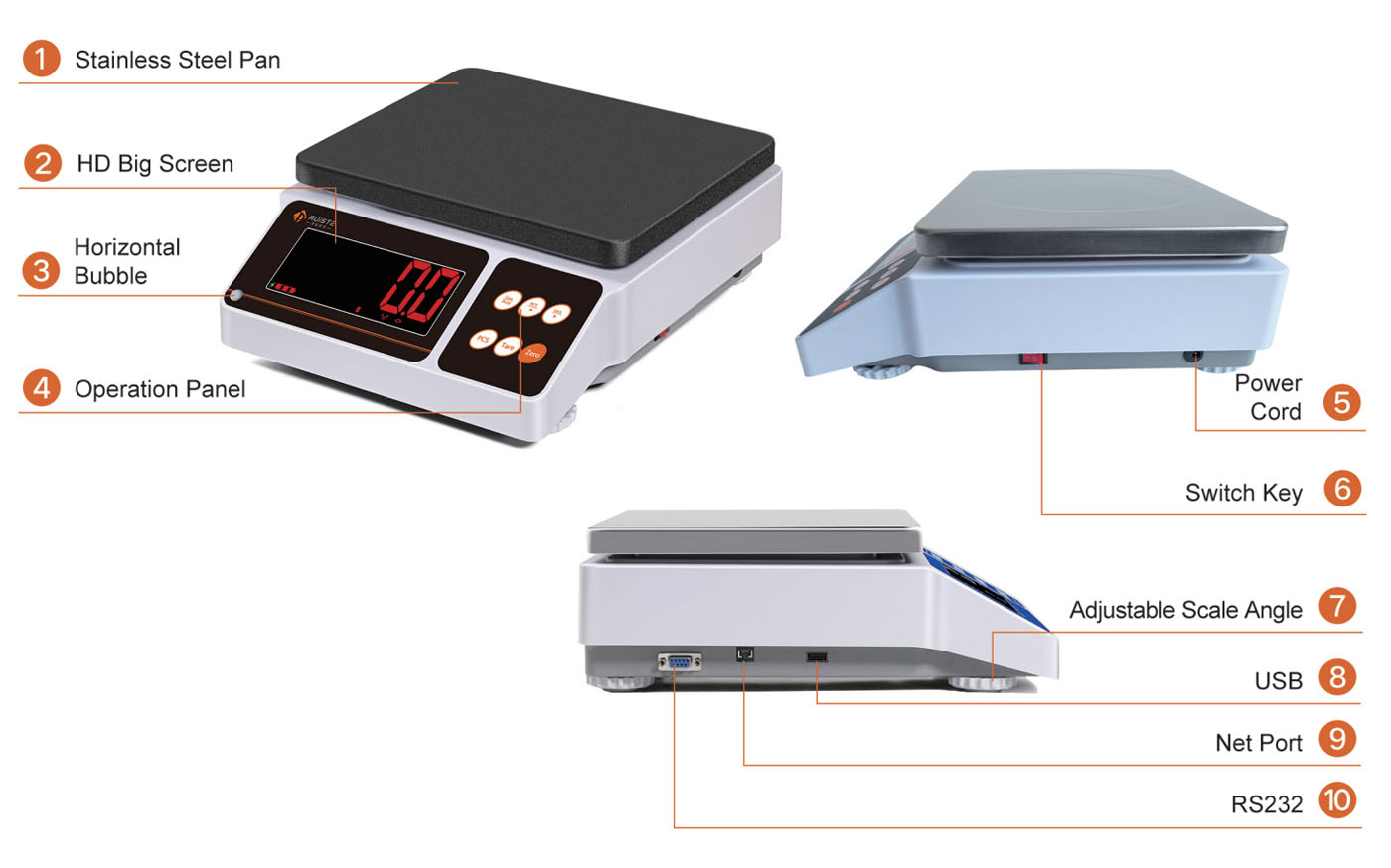

Product Features

  • Overload Warning

    There is an upper and lower limit alarm function for weight and quantity. When the preset value is exceeded, the weighing scale will have a buzzer sound.
  • LCT sensor

    LCT sensor is a well-known domestic brand, aluminum alloy structure, the use of original production strain gauge, long service life. High-precision sensors ensure high accuracy and stability of weighing results.
  • Stainless Steel Large Plate

    The surface of the stainless steel frosted large disc is sandblasted to prevent scratches on the surface of the weighing disc. Large plate, you can put larger items, the use of a wider range.
  • Multiple Modes of Communication

    With serial communication, RS232 serial port standard, connected to the printer. Network port and USB can be selected for secondary development.

Function Introduction

Product Parameters

Weighing Scale RSB3001W RSB600W RSB10001W RSB15001W RSB30001W RSB30000W
Capacity 3000g/3kg 6000g/6kg 10000g/10kg 15000g/15kg 30000g/30kg 30000g/30kg
Readability 0.1g 0.1g 0.1g 0.1g 0.1g 1g
Repeatability ±0.2g
Linear ±0.3g
Stabilization 3秒
Battery 6v4Lead-acid Battery
Unit kg g Ib HI OK LO
Weighing Mode Basic weighing, piece weighing, check weighing, animal weighing upper and lower limit three-color alarm
Pan Size 290× 230mm
Peel Range Full Range
Power Requirements Adapter input: 100 - 240V ~ 200mA,50 - 60Hz,12-18VA adapter output: 5 VDC 2.5A
Overall Size 280 × 190× 270 mm
Interface RS232, USB
N.W. 3kg
G.W. 3.5kg
Shipping Dimension 41*32*19cm
Optional Accessories

  • Warning Lamp

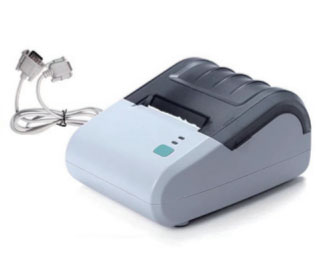

  • Printer

  • Under Hook

  • Test Weight
