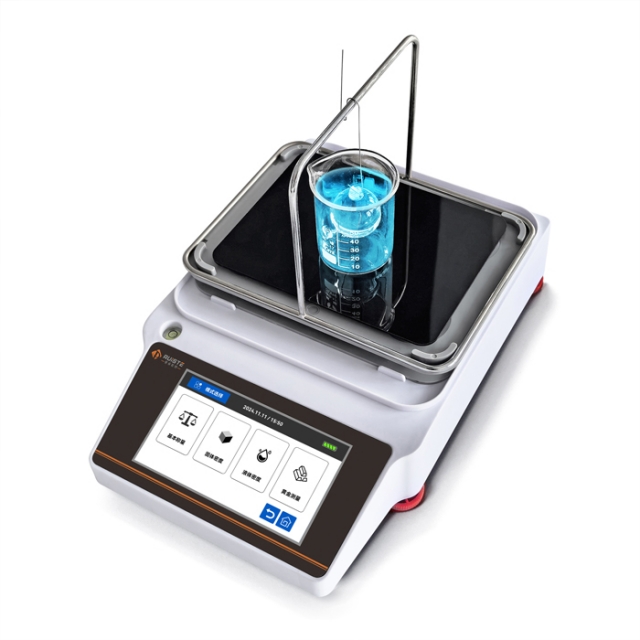

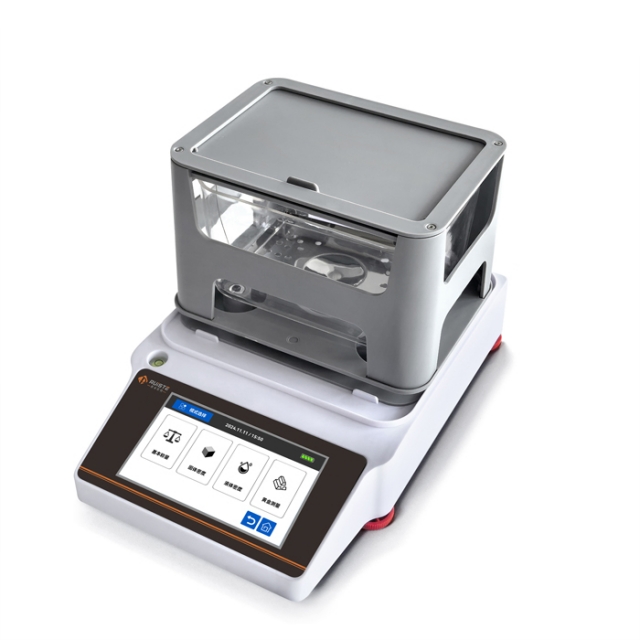

DENSITY BALANCE ME SERIES

Model:0.001g/0.01g

The ME series density balance adopts the Internet of Things 5-inch color TFT control system integrated touch high-definition screen. The entire series of balances adopts German HBM sensors and brand sensors, which can ensure high accuracy and stability of weighing results. This series of precision casting ABS Environmental protection materials are designed, with one-key switching mode of Chinese and English interface, high-efficiency die-cast aluminum alloy base, stable and solid bearing base, stainless steel countertop and stainless steel weighing pan are used in the whole machine, with a resolution of up to 1.2 million, high-speed 24bitsad, excellent anti-interference ability, anti-radiation, anti-static and high-efficiency. The electronic density balance uses Archimedes principle to automatically calculate the density of the sample through the derivation and transformation of the buoyancy and density calculation formula to form an equation. Mainly used for plastic, rubber, plastic particles, metal alloys, mineral rocks, wire and cable, composite materials, magnetic materials, etc., can be directly read solid, block, particle body, film body, floating body such as the sample weight in the air, water weight and density value and volume.

National Hotline:150 0216 1986

Product Features

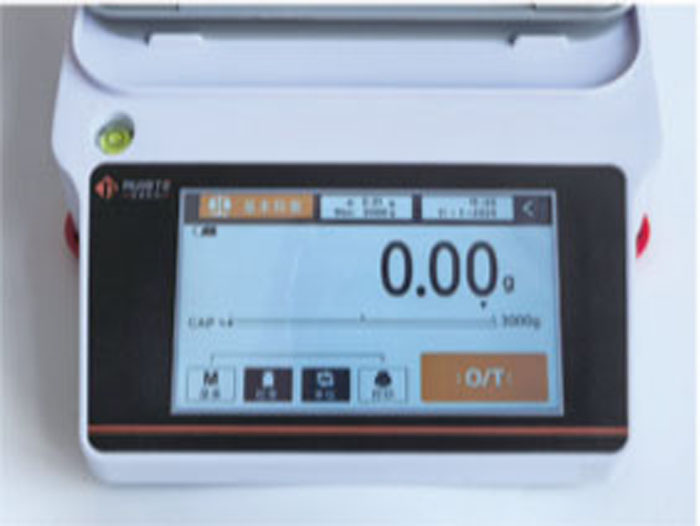

  • Color Touch Screen

    Bright and clear numbers are easy to read in all lighting conditions. The touch screen is easy to operate, the user interface is simple and intuitive, anyone can use it.
  • HBM sensor

    HBM sensor has the characteristics of high precision, low delay, good stability, clear output signal, high reliability and long service life.
  • Density Direct Reading

    5 seconds fast measurement, density direct reading, simple three-step operation, direct display of sample density, eliminating complicated calculation process, greatly improving work efficiency.
  • RS232 Serial Port

    Easy to connect printers and auxiliary equipment. You can even connect your computer and transfer using the built-in features, saving time and avoiding handwriting errors.

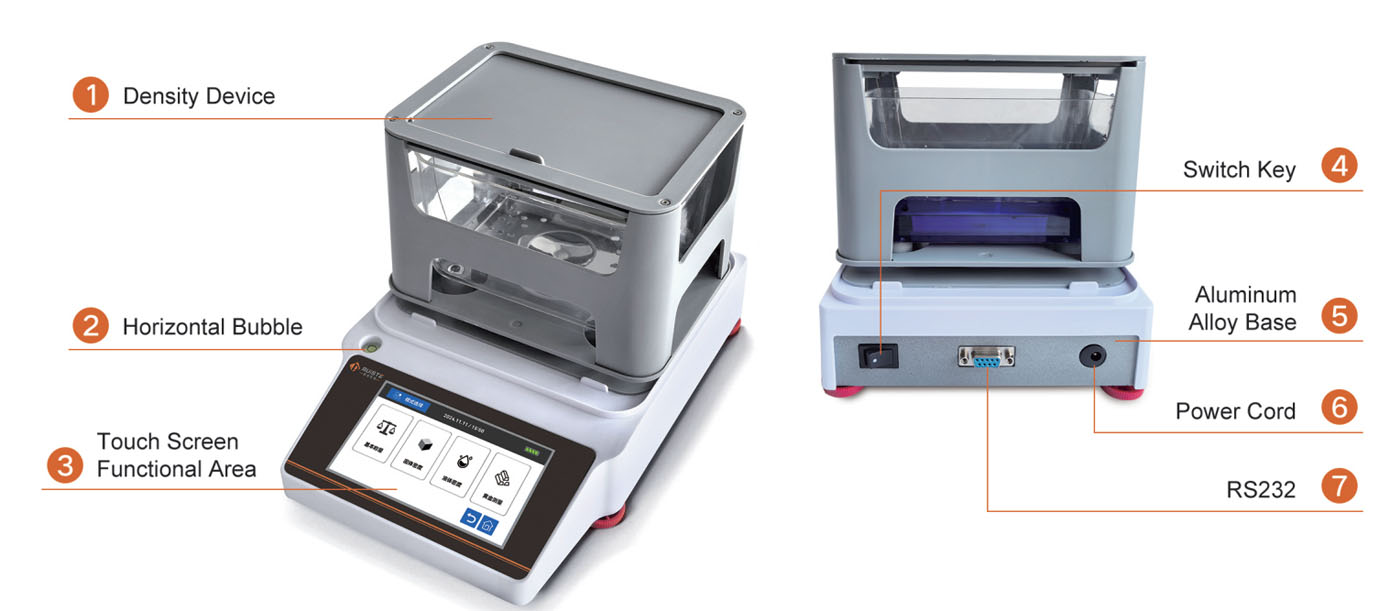

Function Introduction

Product Parameters

Solid Density  ME123G ME303G ME302G ME602G ME1002G ME2002G ME3002G
Liquid Density  ME123Y ME303Y ME302Y ME602Y ME1002Y ME2002Y ME3002Y
Capacity 120g 300g 300g 600g 1000g 2000g 3000g
Readability 0.001g 0.01g
Repeatability ±0.002g ±0.02g
Linear ±0.003g ±0.03g
Density Accuracy 0.0001g/m³ 0.001g/m³
Battery 6v1.3 Lead-acid Battery
Density Range More than 1, less than 1 can be measured
Temperature compensation 0-100 ° C can be set
Solution Compensation 19.999 can be set
Unit g ct oz
Weighing Mode Weighing Mode/Basic Weighing Solid Mode/Liquid Mode/Precious Metal Mode
Power Requirements Adapter input: 100 - 240V ~ 200mA,50 - 60Hz,12-18VA adapter output: 5 VDC 2.5A
Overall Size 280 × 190× 90 mm
Interface RS232, USB
N.W. 3kg
G.W. 4.5kg
Shipping Dimension 38*26*19cm
Optional Accessories

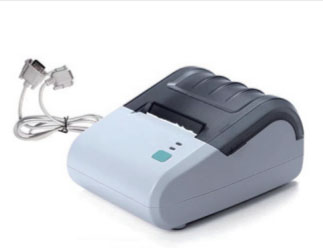

  • Printer

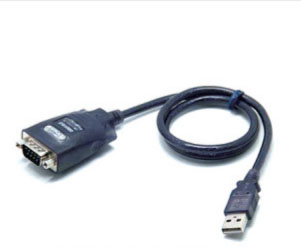

  • RS232-USB Port

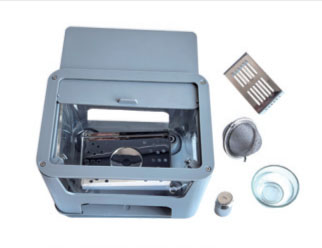

  • Solid Density Meter Accessories

  • Liquid Density Meter Accessories
