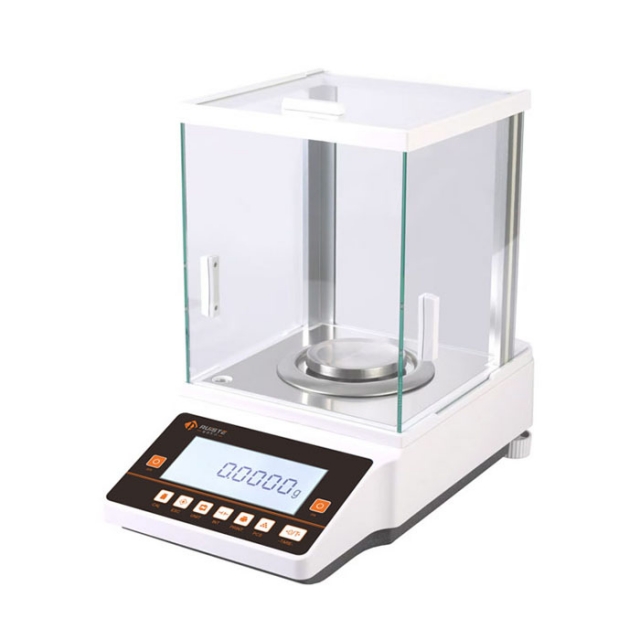

ANALYTICAL BALANCE FA SERIES

Model:0.00001g/0.001g

FA series electromagnetic force balance adopts key structure. The whole series balance adopts high-performance single-chip microprocessor to control high-speed CPU and special ASIC chip. The electromagnetic force Reed high-precision sensor can ensure high accuracy and stability of weighing results. This series has a one-key switching mode in Chinese and English interface, adopts a high-efficiency die-cast aluminum alloy base, the bearing base is stable and solid, and the sample of a fully transparent glass windproof cover is clearly visible. The whole machine is made of stainless steel table panels and stainless steel scales, and is made of precision cast ABS Environmental protection materials. It has weighing, counting, percentage, unit conversion time setting, and density weighing modes.

National Hotline:150 0216 1986

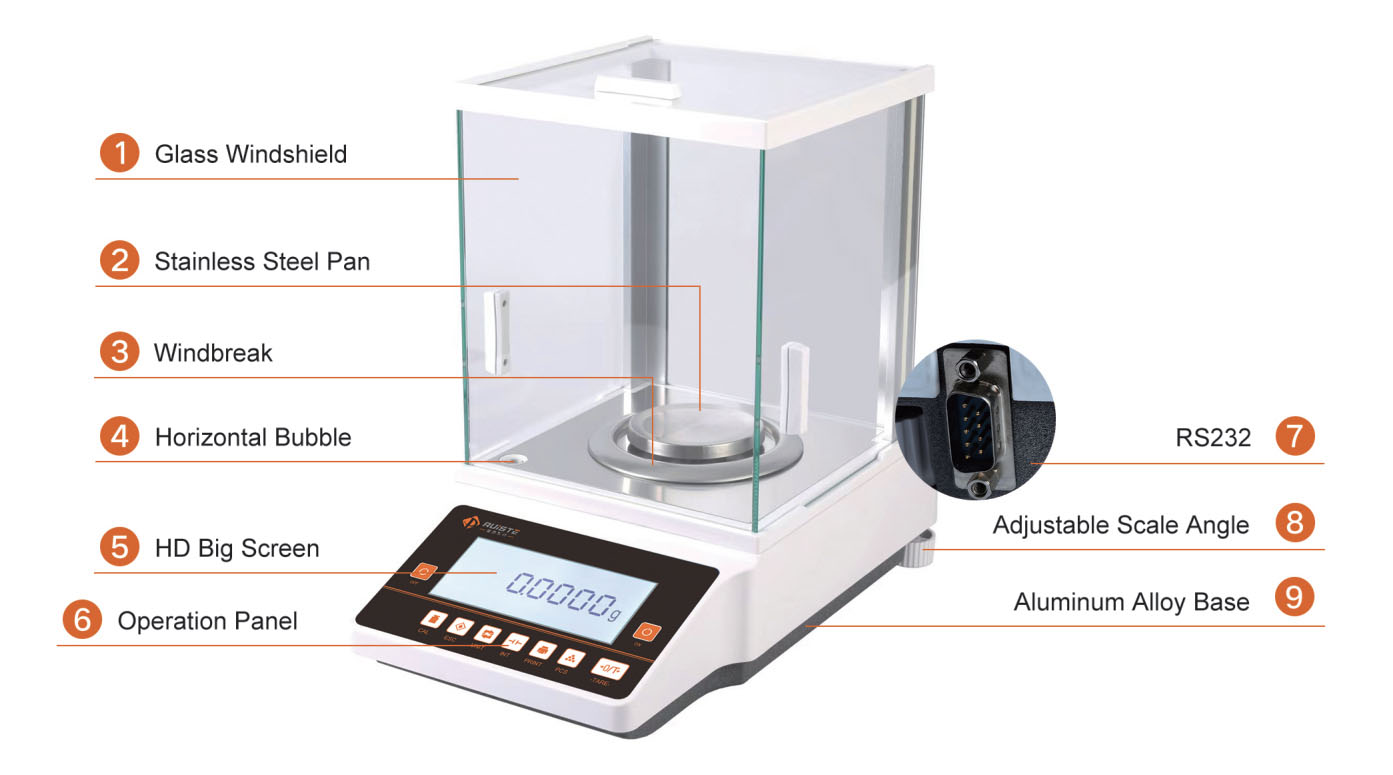

Product Features

  • Clear Keys

    Bright and clear keys for easy operation in all lighting conditions. Each key function is clear, easy to use, user interface is simple and intuitive, anyone can use.
  • Electromagnetic Force Sensor

    High-performance single-chip microprocessor control high-speed CPU and dedicated ASIC chip. The electromagnetic force Reed high-precision sensor ensures high accuracy and stability of weighing results.
  • RS232 Serial Port

    Easy to connect printers and auxiliary equipment. You can even connect your computer and transfer using the built-in features, saving time and avoiding handwriting errors.
  • Standard Weight

    A standard weight is presented to help you calibrate for use. The weight contains a plastic box for easy storage, so as not to affect the weight of falling ash.

Function Introduction

Product Parameters

In Model   FA124N FA224N FA324N
EX Model FA35 FA124 FA224 FA324 FA504 FA1003 FA2003
Capacity 30g 120g 220g 320g 500g 1000g 2000g
Readability 0.00001g 0.0001g 0.0001g 0.0001g 0.0001g 0.001g 0.001g
Repeatability ±0.00005g     ±0.0005g ±0.003g ±0.005g
Linear ±0.0003g     ±0.0003g ±0.003g ±0.003g
Pan Size 80mm 110mm 160mm
Stabilization 3s
Battery No
Unit g/ct/lb/pcs
Weighing Mode Basic weighing, piece weighing
Peel Range Full Range
Power Requirements Adapter input: 100 - 240V ~ 200mA,50 - 60Hz,12-18VA adapter output: 5 VDC 2.5A
Overall Size 360 × 210× 320 mm
Interface RS232, USB
N.W. 5kg
G.W. 7.3kg
Shipping Dimension 50× 36 × 47cm
Optional Accessories

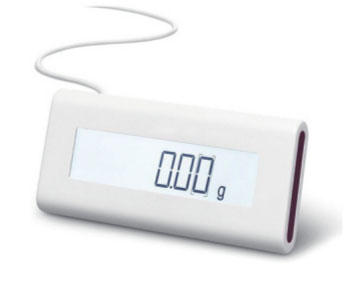

  • Extra Display

  • Printer

  • Density device

  • Test Weight
